Orignal Scanmatik-3 (Russia) Tool With Boot / Bench Cable

Scanmatik 3 – Professional Pass-Thru Diagnostic & Reprogramming Tool

Scanmatik 3 (SM3) is the latest professional Pass-Thru adapter engineered for vehicle diagnostics, ECU programming, and reflash operations across a wide range of passenger cars, commercial vehicles, trucks, and buses. As the successor to the SM2 Pro, Scanmatik 3 introduces CAN-FD and DoIP support, delivering faster communication, broader vehicle compatibility, and seamless integration with OEM diagnostic platforms and professional tuning software. Designed for workshops, ECU specialists, and automotive engineers, it enables reliable diagnostics and reprogramming through SAE J2534-1/2 and TMC RP1210C standards.

Wide Vehicle Compatibility

Supports electronic control systems of:

• American Vehicles
• European Vehicles
• Japanese Vehicles
• Russian Vehicles
• Passenger Cars, Trucks & Heavy-Duty Vehicles

Compatible with OEM and third-party software including:

• PCMflash
• BitBox
• Combiloader
• MDFlasher
• OEM Dealer Software (ODIS, MB-DAS, etc.)

Advanced Protocol Support

Scanmatik 3 supports modern and legacy communication protocols:

• CAN 2.0 / CAN-FD
• DoIP (Diagnostics over IP)
• ISO-9141-2 / ISO-14230-2 (K-Line)
• J1850 VPW / PWM
• Chrysler SCI
• Single Wire CAN (GM)
• SAE J2534-1 / J2534-2
• TMC RP1210C (Heavy Duty)

This ensures full compatibility with both modern vehicles and legacy systems.

Flexible Connectivity Options

• USB Connection to PC
• Stable Wi-Fi Connection (In-house developed firmware)
• Works with Windows & Android Devices
• No Serial Port Emulation Required
• Reliable Communication for Diagnostics & Flashing

Industrial-Grade Protection & Reliability

• Galvanically Isolated USB Port
• Fully Protected Transceiver Lines (Short-Circuit & Overvoltage Protection)
• Supports 24V Systems (Trucks & Buses)
• Load Dump & Voltage Spike Protection up to 55V
• Designed for Continuous Workshop Use

Technical Specifications

• 13× ISO-9141-2 / K-Line Channels (Multiplexed to OBD Pins)
• 5× CAN / CAN-FD Channels (Multi-pin configurable)
• 1× J1850 VPW/PWM Channel
• 1× Single Wire CAN (GM)
• 10/100BASE-TX DoIP Channel
• Programming Voltage Generator (5-24V FEPS)
• Wireless Standard: IEEE 802.11 b/g/n
• Adapter Size: 97 × 75 × 22 mm

Package Contents

• Scanmatik 3 (SM3) Device

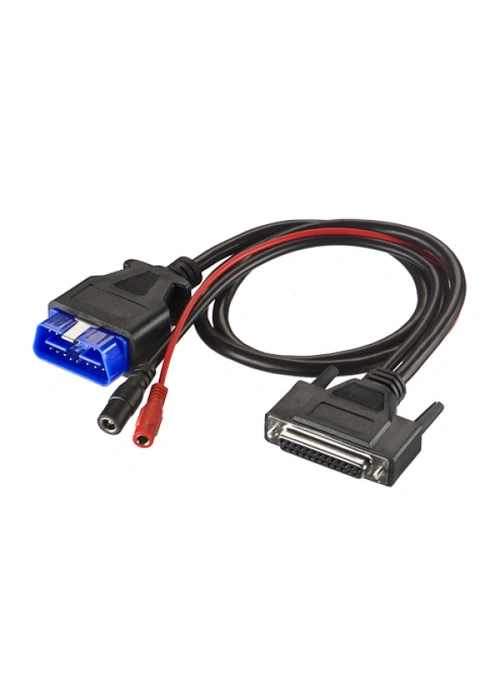

• OBDII Cable with AUX
• USB A-B Cable
• Lighter Power Cable
• Boot / Bench Cable

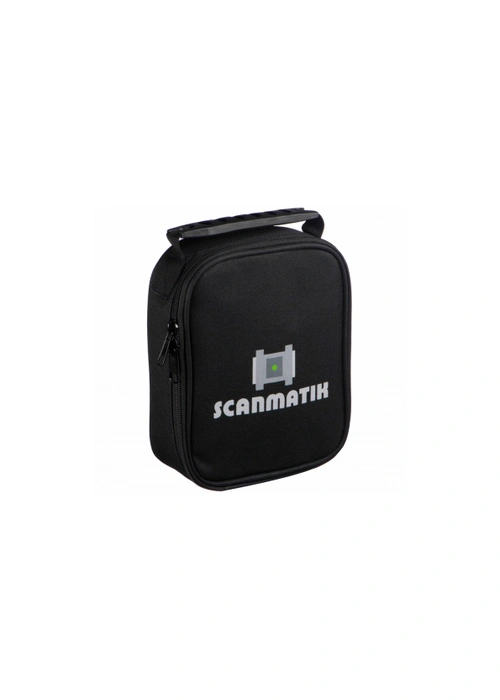

• Scanmatik Carrying Bag
