TopDiag PS100PRO Power Circuit Tester with Wire Finder to Locate Breakpoint add Battery Testing

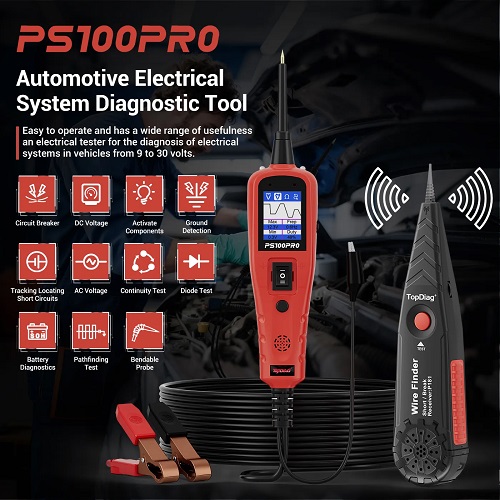

TopDiag PS100PRO Power Circuit Tester Latest generation of intelligent Electrical circuit Tester and Circuit Breakpoint Lacation. It is a professional power tool for quickly testing all electrical systems with 9V-30V  Power Supply .

Features of the Diagnosis.

• Quickly diagnose positive and negative circuits.
• Accurately trace and locate broken wires.
• Battery health status analysis.
• Test for continuity using the built-in auxiliary ground lead.
• Press the power switch to test the function of electrical components by conducting posi tive or negative battery current to the probe tip without the use of jumper wires.
• Immediately tests for poor ground contact without voltage drop testing,Short circuit pro tection is also available. If overloaded, the internal circuit breaker will trip.
• Trace and locate short circuits without wasting fuses. The tool's long cable allows you to test along the entire length of the vehicle, eliminating the need to constantly search for a suitable vehicle ground.

Diagnostic Menu

1,DC Voltage (MIN & MAX)
2,AC Voltage (MIN,MAX,Frequency & Duty Cycle)
3,Resistance Test

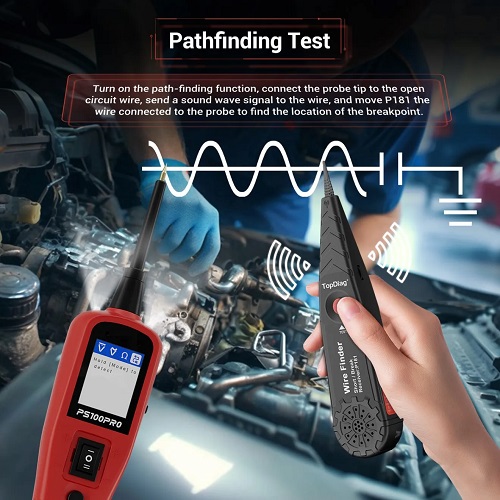

4,PathFinder (Breakpoint Location)
5,Diode Test & Continuity Test

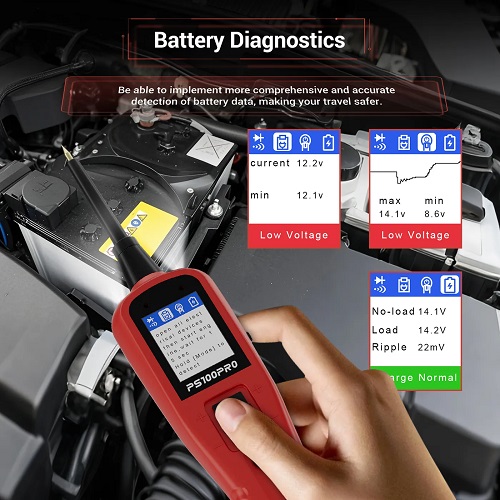

6.Battery Tester (Startup Test, Charge Test, Load Test)

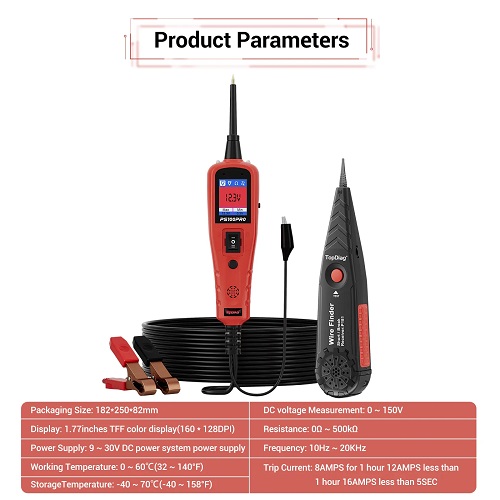

Specifications and Parameters：

Model: PS100PRO
Packing Size: 190*25*10MM
Display: TFF color display ( 160 * 128 DPI)
Power Supply: 9-30V DC power system power supply
Working Temperature: 0 ~ 60°C (32 ~ 140°F)
Storage Temperature: -40 ~ 70 °C (-40 ~ 158 °F)
DC voltage Measurement: 0 V ~ 150 V ,;; 1 % error
AV Voltage Measurement: -100 VAC ~ + 100 VAC
Resistance:  0-500k Ohm
Frequency:  0~20KHz
Trip Current: 8AMPS for 1 hour, 12AMPS less than 1 hour ,16AMPS less than 5SEC

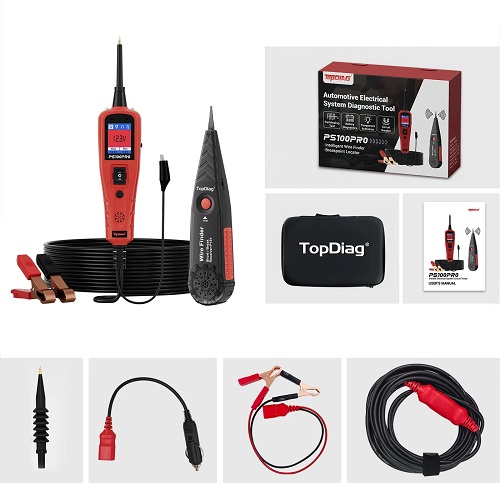

Package List:

1 x PS100 Pro Circuit Tester
1 x Wire Finder
1 x Alligator Clip Battery Cable
1 x Extension Cable
1 x Probe Adapter

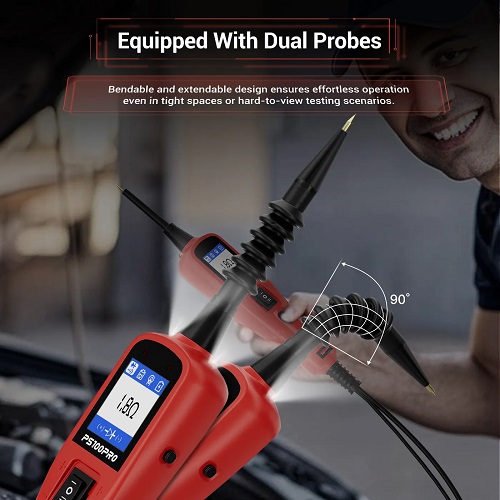

1 x Probe Tip (Bendable Position)
1 x User Manual
1 x Packing Bag

Language:

English, Spanish, German, French, Italian, Portuguese, Polish, Russian, Vietnamese, Thai, Indonesian, Filipino, Malay, Arabic, Korean, Japanese, Traditional Chinese;
